Versatile and sleek the Morewood Zula is our cross country bike.

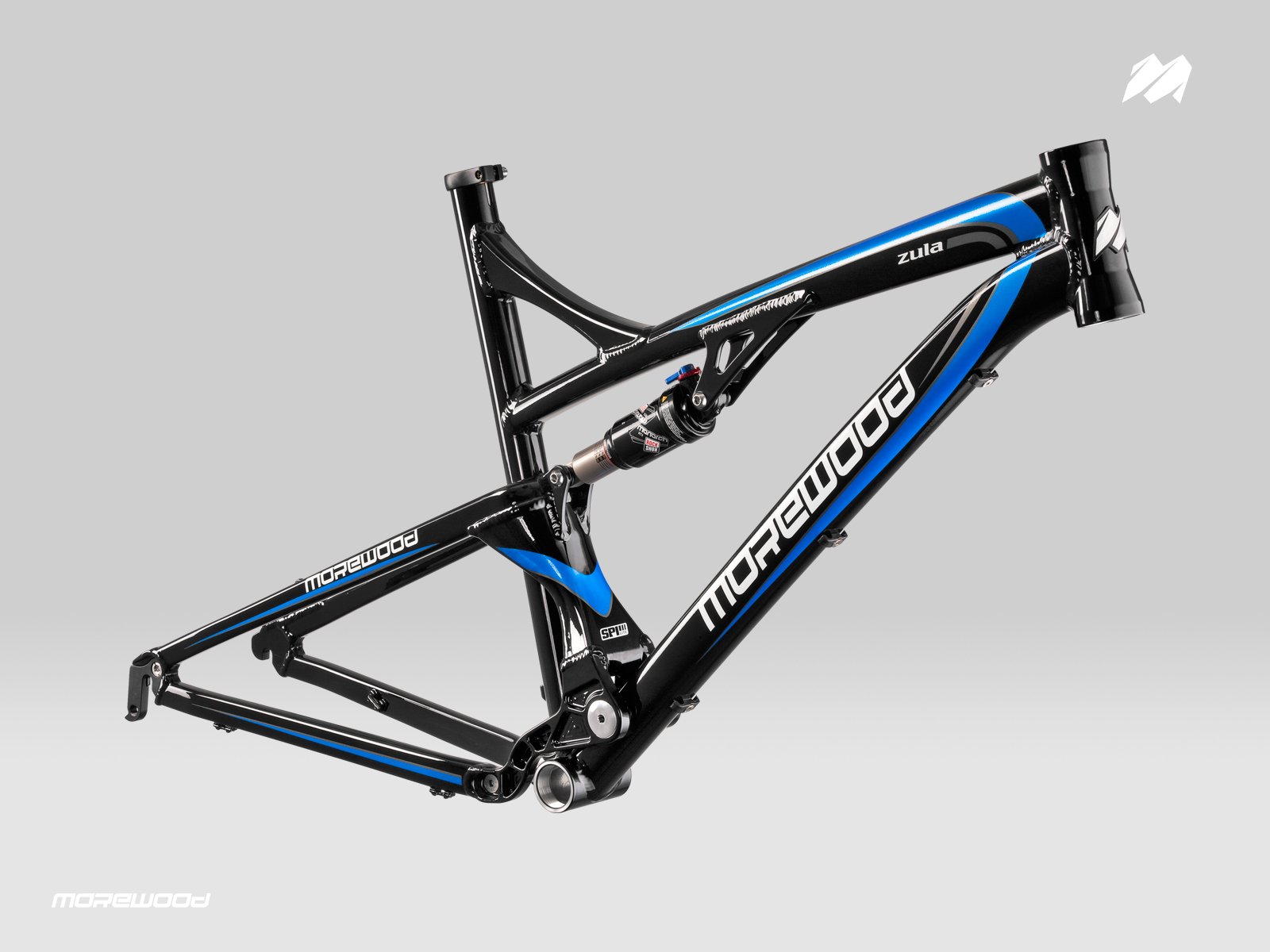

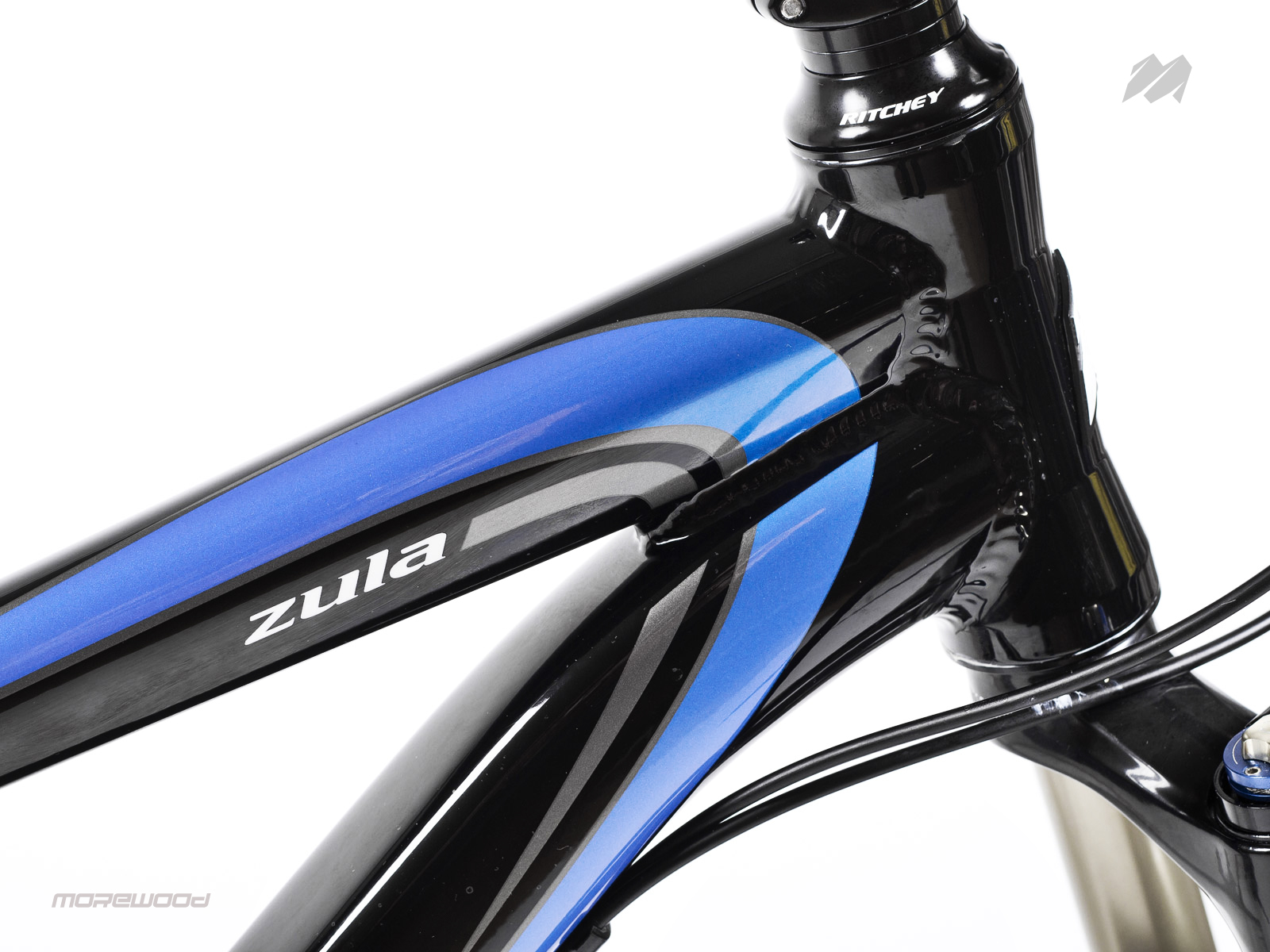

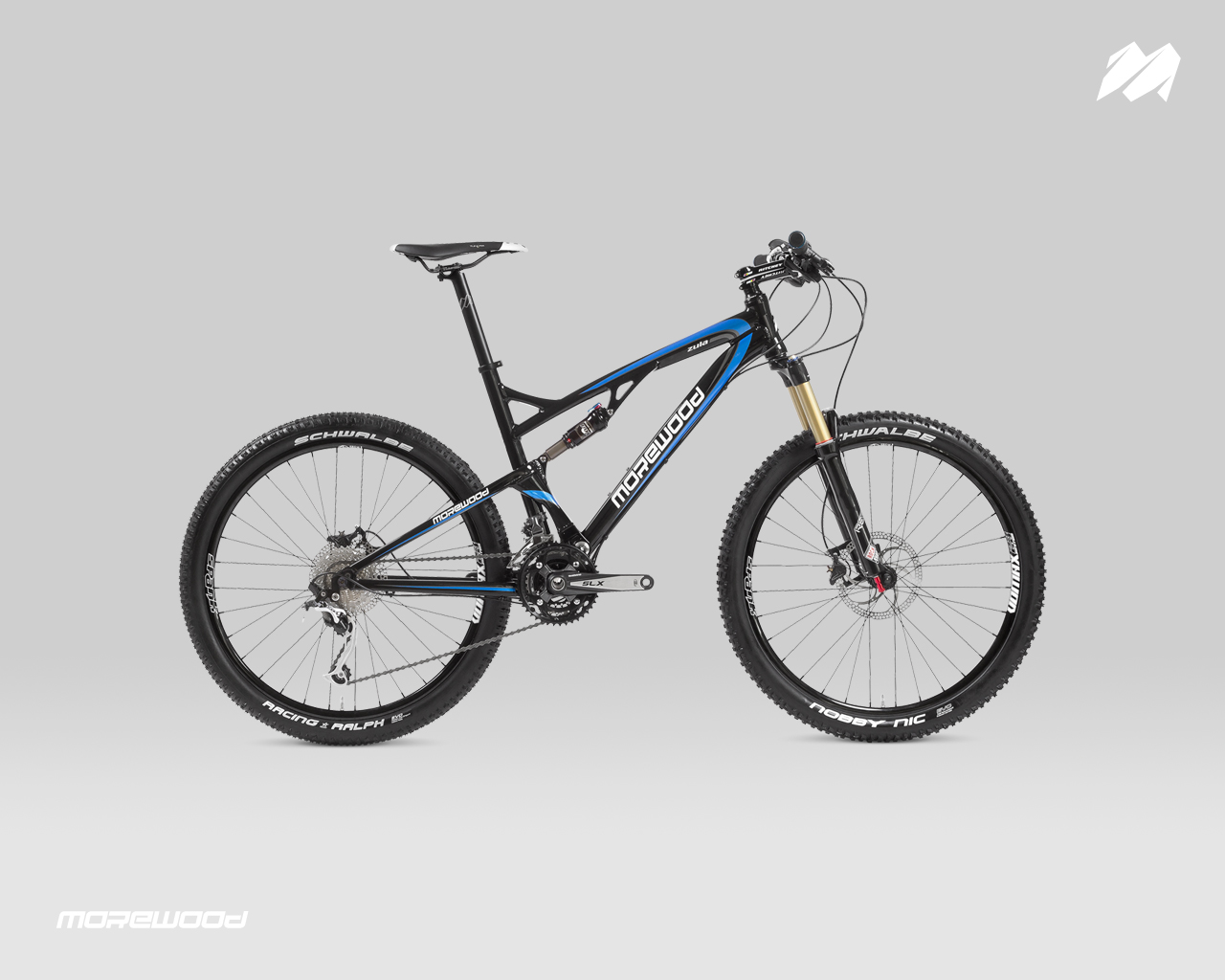

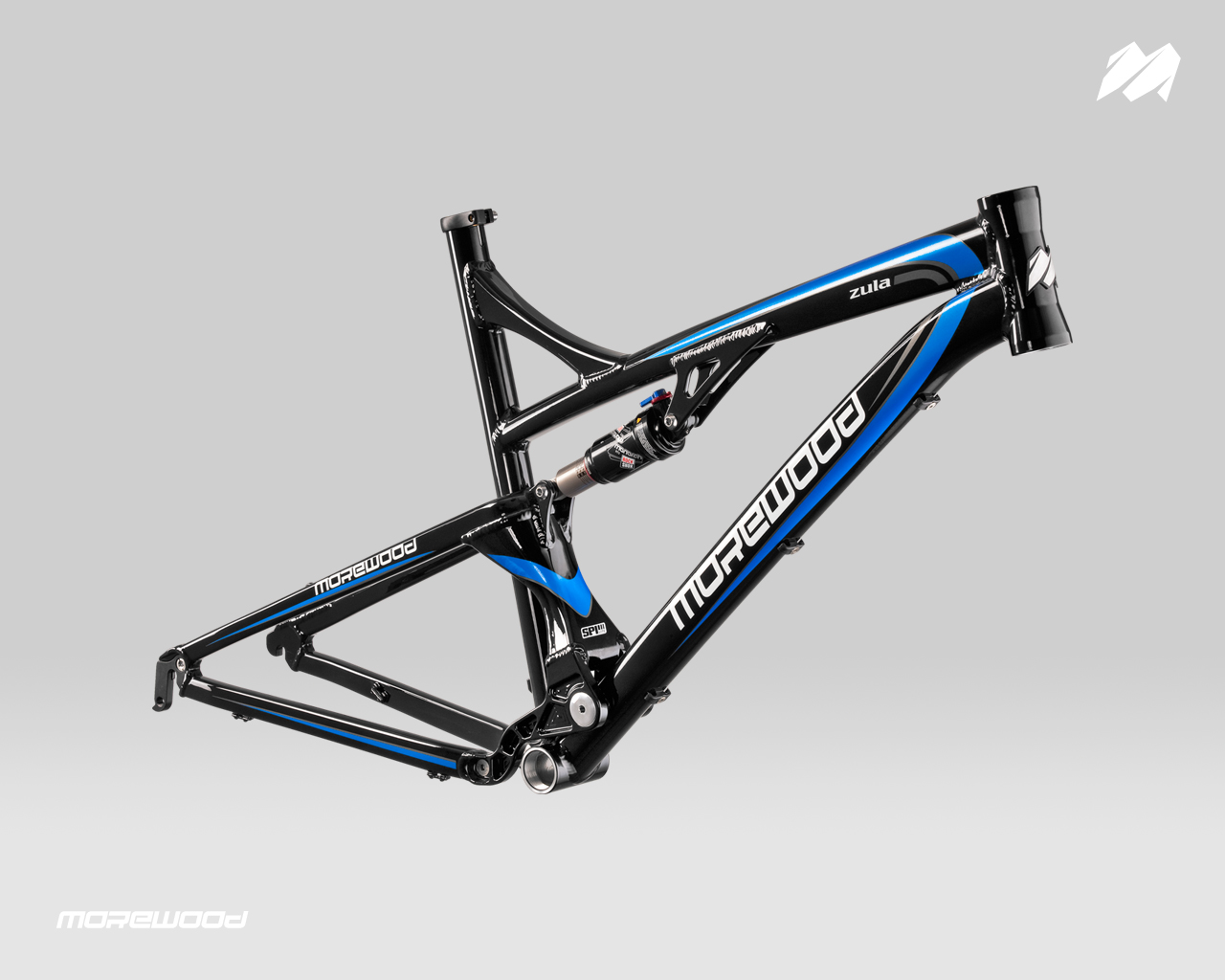

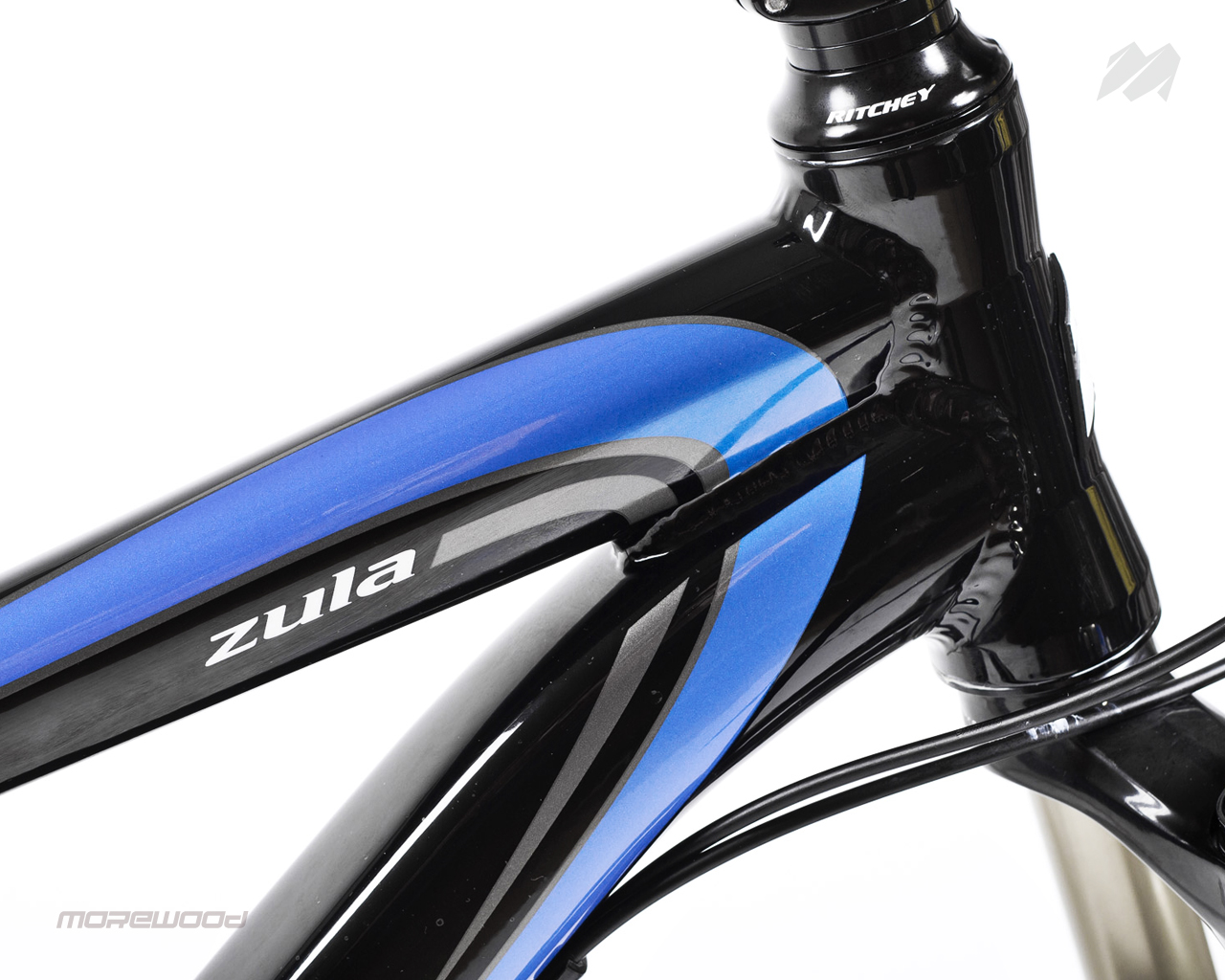

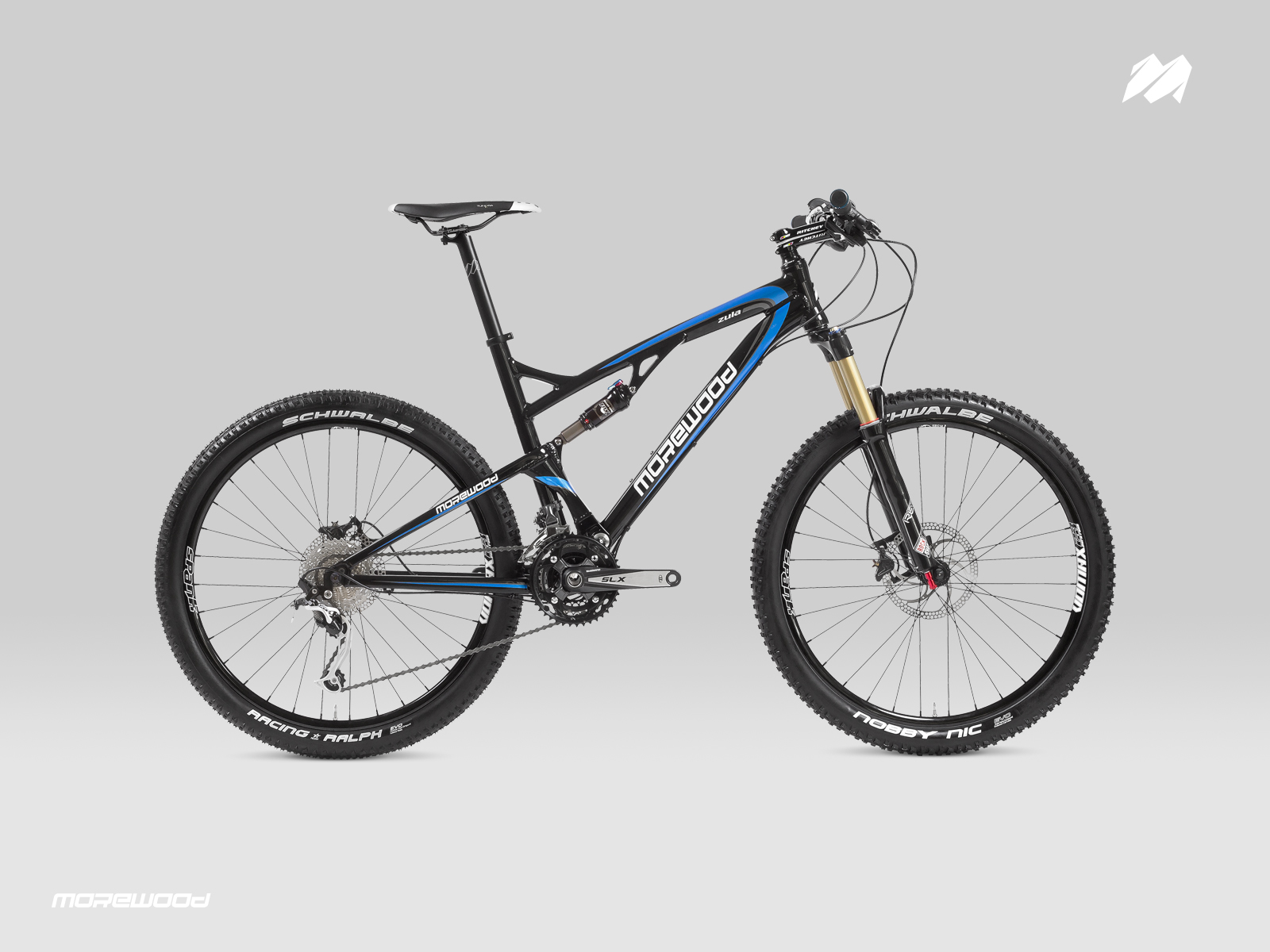

Zula

Versatile and sleek the Zula will match your heart rate in terms of sheer handling precision. Soon to be available in 650B (27.5") wheel format.

Features

  • 4" REAR TRAVEL (100mm)
  • 80mm - 120mm (REC. FORK)
  • FOX RP2
  • Black and white frame colours

Technology

SPI Lite

Frame Specs

Zula 2013 Frame Specs

44mm Semi-integrated headtube 135mm QR dropout
CNC machined 6082 Ali replaceable derailleur hanger 73mm bottom bracket
160mm rear brake mount to international standard 30.9mm seatpost size
Shock: Fox RP2 100mm [4"] rear wheel travel
165mm x 38mm [6.5" x 1.5"] rear shock length SPI Lite - simple, refined pivot interface
Enduro MAX sealed pivot bearings Proprietary Al 6000 series formed and butted tubeset
Small, medium, large and extra large frame sizes -
  • 44mm Semi-integrated headtube
  • 135mm QR dropout
  • CNC machined 6082 Ali replaceable derailleur hanger
  • 73mm bottom bracket
  • 160mm rear brake mount to international standard
  • 30.9mm seatpost size
  • Shock: Fox RP2
  • 100mm [4"] rear wheel travel
  • 165mm x 38mm [6.5" x 1.5"] rear shock length
  • SPI Lite - simple, refined pivot interface
  • Enduro MAX sealed pivot bearings
  • Proprietary Al 6000 series formed and butted tubeset
  • Small, medium, large and extra large frame sizes

Geometry

Size Top Tube Reach Stack Seat Tube Chainstay Wheelbase Head Angle Seat Angle BB Height Head Tube Shock Fork
Small 560mm 398mm 548mm 405mm 425mm 1065mm 69.5° 73.5° -10 110mm 6.5' x 1.5'
165 x 38mm		 473mm
Medium 585mm 420mm 557mm 460mm 425mm 1091mm 69.5° 73.5° -10 120mm 473mm
Large 615mm 447mm 566mm 500mm 425mm 1122mm 69.5° 73.5° -10 130mm 473mm
X-Large 640mm 469mm 576mm 535mm 425mm 1147mm 69.5° 73.5° -10 140mm 473mm
Sukuma 2013 Geometry
SizeSmall
Top Tube560mm
Reach398mm
Stack548mm
Seat Tube405mm
Chainstay425mm
Wheelbase1065mm
Head Angle69.5°
Seat Angle73.5°
BB Height-10
Head Tube110mm
Shock6.5' x 1.5'
165 x 38mm
Fork473mm
SizeMedium
Top Tube585mm
Reach420mm
Stack557mm
Seat Tube460mm
Chainstay425mm
Wheelbase1091mm
Head Angle69.5°
Seat Angle73.5°
BB Height-10
Head Tube120mm
Shock6.5' x 1.5'
165 x 38mm
Fork473mm
SizeLarge
Top Tube615mm
Reach447mm
Stack566mm
Seat Tube500mm
Chainstay425mm
Wheelbase1122mm
Head Angle69.5°
Seat Angle73.5°
BB Height-10
Head Tube130mm
Shock6.5' x 1.5'
165 x 38mm
Fork473mm
SizeX-Large
Top Tube640mm
Reach469mm
Stack576mm
Seat Tube535mm
Chainstay425mm
Wheelbase1147mm
Head Angle69.5°
Seat Angle73.5°
BB Height-10
Head Tube140mm
Shock6.5' x 1.5'
165 x 38mm
Fork473mm

SPI LITE

Stable Pivot Interface Lite

Simpler, stronger and lighter

Stable Pivot Interface is Morewood's solution to low-maintenance and simplicity for our single pivot frame designs. SPI Lite is the lightest version of SPI to date. It differs from the SPI and SPI2 by eliminating the bolt that usually holds the caps together and consists of only two caps that screw into one another. This reduces the overall weight of the system, and delivers the same reliable low-maintenance performance you have come to expect from Morewood. (Currently it is only found on the Zula, and cannot be used as a substitute on bikes with SPI2.)

AHigh-Strength Bolt (6mm Allen Key)
BPivot Cap (8mm Allen Key)
CWashers
